首页 > 视频会议及音频系统 > 音频设备 > 雅马哈YAMAHA 功放 PC406-D

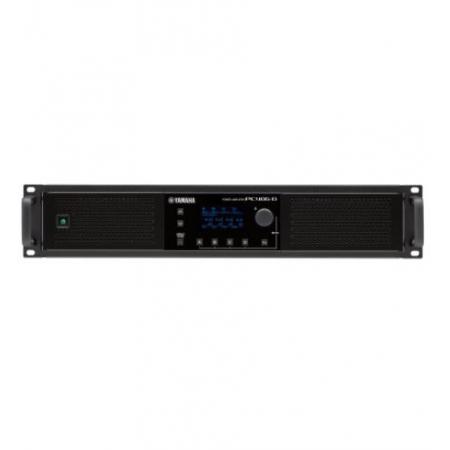

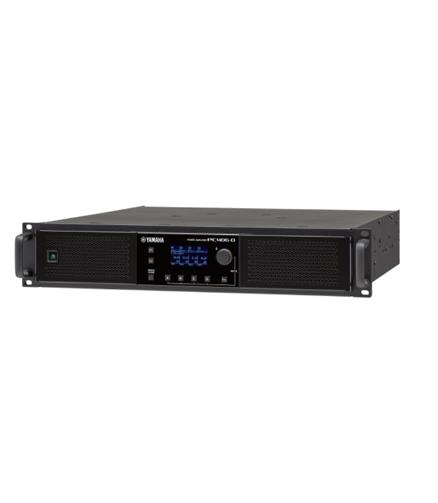

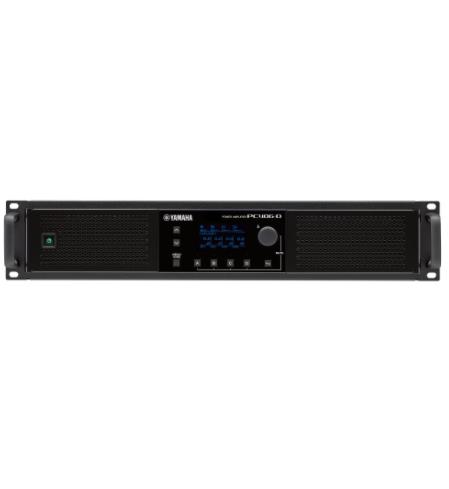

雅马哈YAMAHA 功放 PC406-D

商品货号:CYZG063882

商品品牌:YAMAHA

本店价:24600

注册用户:24600

用户评价:

comment rank 5

商品总价:

购买此商品可使用:24600 积分

我要买:
浏览历史
  • 商品详情
  • 商品参数
  • 商品评分
  • 售后保障

    一般规格
    输出功率:1kHz,无失真,20msec爆音,所有驱动通道 16Ω 300W x 4
    600W x 4
    900W x 4
    1300W x 4
    8Ω(BRIDGE模式) 1800W x 2
    4Ω(BRIDGE模式) 2600W x 2
    Hi-Z(70V 模式) -
    Hi-Z(100V 模式) -
    功放类型 Class D, Single ended output
    总谐波失真 0.01% (8Ω, 1kHz, 10W, All channels driven), 0.1% (4Ω, 1kHz, Half power, All channels driven)
    频率响应 +0.5, -1.5dB (8Ω, 1W, 35Hz to 20kHz)
    串扰 ≦ -60dB (8Ω, 1kHz, Half power, Input 150Ω shunt A-weighted)
    信噪比 109dB (8Ω, Gain setting = 32dB, A-weighted)
    电压增益/灵敏度 8Ω音量最大 32.0dB/+7.0dBu (Gain setting: 32dB), 26.0dB/+13.0dBu (Gain setting: 26dB), 35.0dB/+4.0dBu (Gain setting: +4dBu), 25.0dB/+14.0dBu (Gain setting: +14.0dBu)
    Hi-Z 100V 模式,音量最大 -
    Hi-Z 70V 模式,音量最大 -
    保护电路 荷载保护 POWER switch on/off: Output mute, Output voltage protection: Over voltage limiter, user configurable by wattage and speaker preset, DC-fault: Power supply shutdown (NOT restored automatically)
    功放保护 Thermal: Output limiter (Restored automatically) → Output mute (Restored automatically), Over current: Output mute (Restored automatically), Over voltage: Output limiter (Restored automatically), Integrated Power Limit: Output limiter (Restored automatically)
    电源保护 Thermal: Output limiter (Restored automatically) → Power supply shutdown, Over voltage: Power supply shutdown, Over current: Power supply shutdown
    冷却 7 step variable speed fan x 3, front to rear airflow
    最大输入电压 +25dBu
    输入阻抗 20kΩ (balanced)
    采样频率 96kHz
    A/D D/A 转换器 AD: 32-bit linear, 64 times over sampling; DA: 32-bit linear, 128 times over sampling
    Dante Interface 通道计数 16 IN with Dante Redundancy, 16 OUT
    采样频率 96/88.2/48/44.1kHz
    Dante延迟 0.25/0.5/1/2/5ms
    位深 32/24bit
    处理器 20 x 8 input matrix mixer, Room EQ: 16 band IIR EQ, Room Delay: 0 - 1000msec, Speaker Processor: X-Over (IIR/FIR*), PEQ (16 band IIR/FIR*), Delay, Peak Limiter, RMS Limiter
    延迟 Analog Input to Speakers: 0.9msec; Dante Input to Speakers (Dante latency setup = 0.25msec): 1.5msec (fs=96kHz), 1.6msec (fs=88.2kHz), 2.0msec (fs=48kHz), 2.1msec (fs=44.1kHz)
    I/O 接口 模拟输入 XLR-3-31 x 4
    数字 I/O Dante Interface: etherCON x 2 (Redundant/Daisy Chain)
    扬声器输出 Neutrik speakON NL4 x 4
    控制端口 RJ45 x 1
    AC AC inlet (powerCON 20A) x 1
    其它 Remote, Fault Output: Euro block 8pin (mini) x2 (GPI x 4, GPO x 6, +5V x 2)
    指示灯 Power (Green) x 1; Channel Status x 4 : Signal (Green), Limit (Yellow), Protect/Mute (Red); Auto LED off and dimmer feature (except POWER LED)
    电源要求 100V - 240V 50Hz/60Hz **
    功耗 1050W (1/8 MAX power, 2Ω, Pink noise at all channels), 165W (Idle), 100W (Sleep, all channels), 9W (Standby 100V/120V), 12W (Standby 230V)
    工作温度 0°C to +40°C
    存储温度 -20°C to +60°C
    外形尺寸 W 480mm (18.90 inch)
    H 88mm (3.46 inch): 2U
    D 528mm (20.79 inch)
    净重 15.6 kg (34.4 lbs)
    附件 Owner's Manual x 1, Power Cable (2.0m) x 1, GPIO Mini Euro block plug 3.5mm 8p x 2, Air filter (L x 1, R x 1), Grill (L x 1, R x 1), Handle x 2, Screw x 4
